EXT-VGA-141LR

VGA Extender LR

Extends 1920×1200 resolution VGA up to 330 ft via one CAT-5e

Description

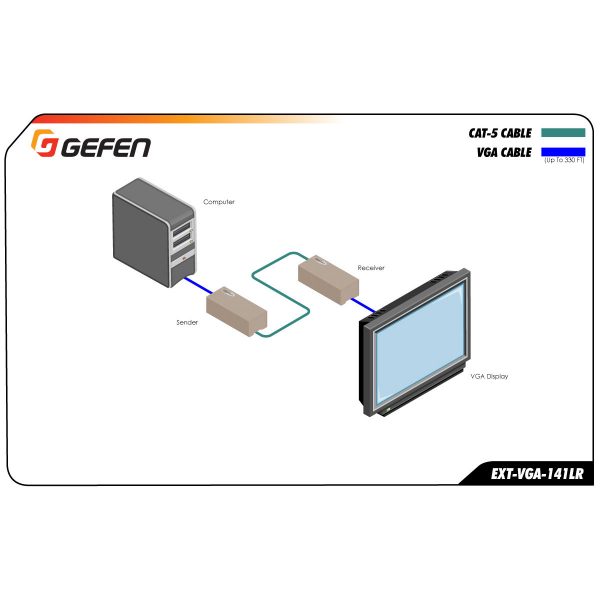

The VGA Extender LR allows users to extend video signals beyond the A/V rack. The VGA Extender Series can be used to extend an analog signal to cover distances up to 330 feet. Industry standard Category 5e (CAT-5e) cable is used for the extension.

Features

  • Extends any VGA or high definition component display up to 330 feet (100 meters)
  • One CAT-5e cable for extension
  • Supports resolutions up to 1080p, 2K, and 1920 x 1200

Specifications

Video Amplifier Bandwidth: 350 MHz

Input Video Signal: 1.2 V p-p

Input Sync Signal: 5 V p-p (TTL)

Horizontal Frequency Range: 15-70 KHz

Vertical Frequency Range: 30 – 170 Hz

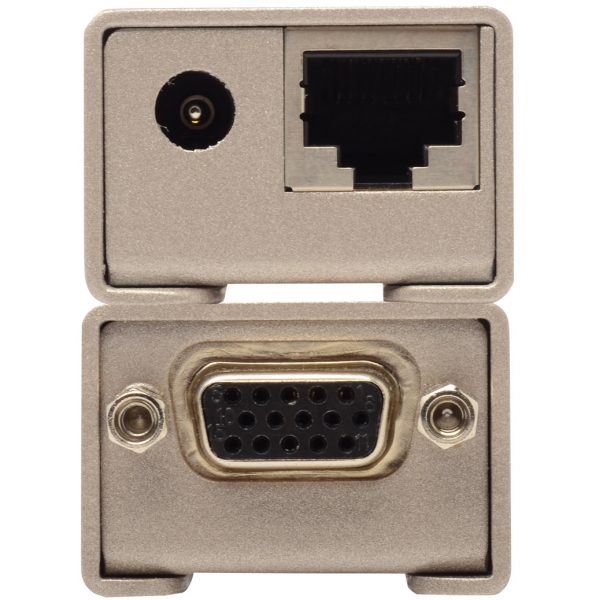

Video In: HD-15 male

Video out: HD-15 female

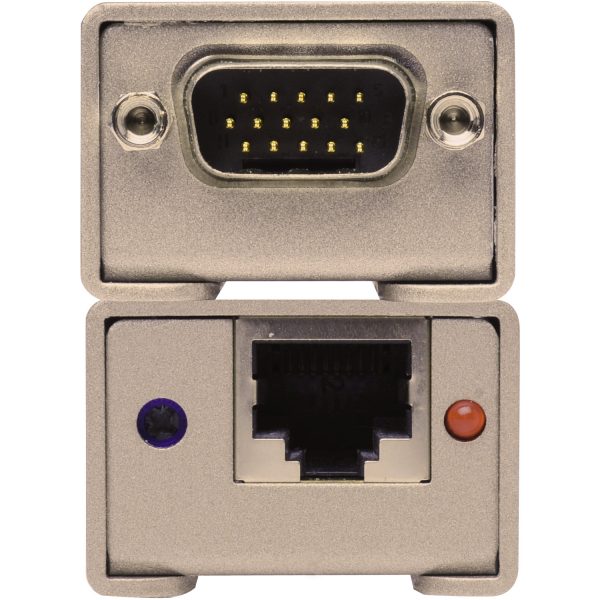

Link Connector: RJ-45 Shielded

Power Supply: 5V DC

Power Consumption: 5 W (max.)

Dimensions: : 3.7" W x 0.85" H x 1.4" D each module

Shipping Weight: 2 lbs.

Other Specifications

Shipping Info
  • Length9.31 (Inches)
  • Width6.1 (Inches)
  • Height3 (Inches)
  • Weight1.7 (Lbs)
  • UPC845344000008
Other Specifications
  • Video Amplifier Bandwidth: 350 MHz
  • Input Video Signal: 1.2 V p-p
  • Input Sync Signal: 5 V p-p (TTL)
  • Horizontal Frequency Range: 15-70 KHz
  • Vertical Frequency Range: 30 – 170 Hz
  • Video In: HD-15 male
  • Video out: HD-15 female
  • Link Connector: RJ-45 Shielded
  • Power Supply: 5V DC
  • Power Consumption: 5 W (max.)
  • Dimensions: 3.7" W x 0.85" H x 1.4" D each module
  • Shipping Weight: 2 lbs.
In The Box

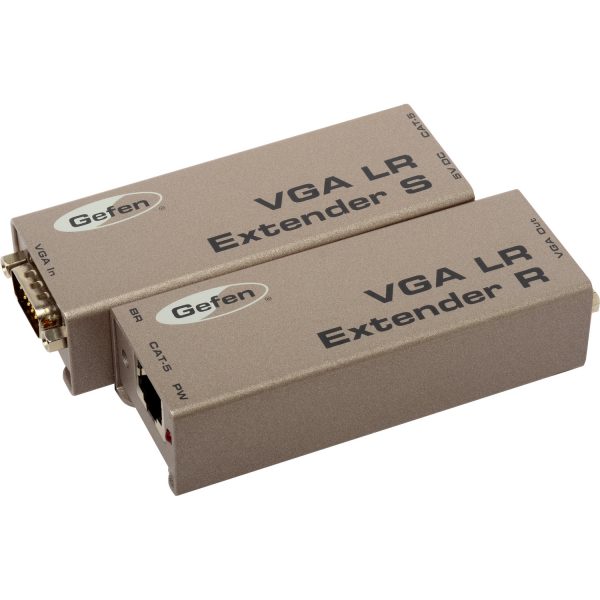

  • VGA Extender S Sender Unit (1)
  • VGA Extender R Receive Unit(1)
  • 6 foot VGA cable (M-F) (1)
  • 5V DC power supply (EXT-PS51AIP or EXT-PS51AIP-6)(1)

Warranty

2 year product warranty


Please see the Gefen warranty page for more details
