EXT-CU-LAN

Matrix Controller

Configure and Control a  scalable matrix of Gefen Video over IP products

Description

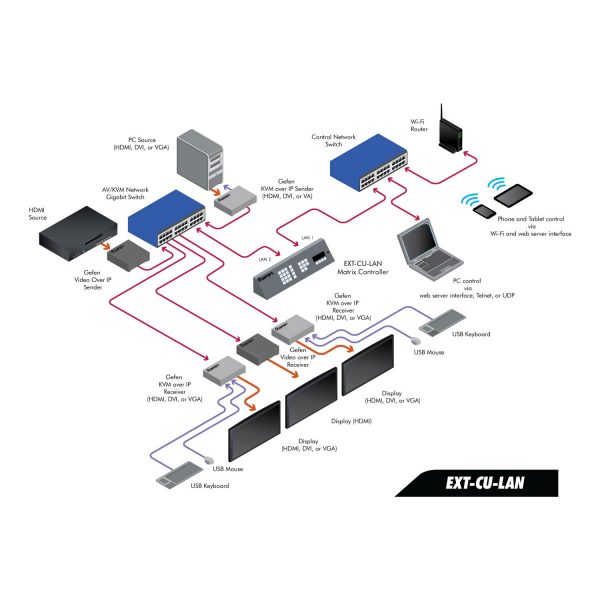

The Gefen EXT-CU-LAN Matrix Controller is a hardware platform designed to manage and control the Gefen family of Video and KVM over IP products in a virtual matrix environment. Its comprehensive and user-friendly interface can be accessed by any web-enabled device, including phones, tablets, and PCs. End-users can control matrix routing and access presets, no matter the size and complexity of the system. It also manages access to the AV network, providing two independent levels of security for administrators and end-users. With applications ranging from broadcast, rental/staging, control rooms, security, digital signage, campus/education, to multi-room AV, the EXT-CU-LAN provides a complete and cost-effective solution for managing video and audio in classrooms, conference rooms, command centers, and as the backbone of any high performance system that needs to interface with multiple sources and displays, AV formats, and resolutions in a dynamic environment.

Virtual Matrix Interface

Setup of the matrix system is simple and straightforward. All connected Gefen Video or KVM over IP products are automatically detected and configured as necessary. Its conventional front-panel lay(more…)

Features



  • Detects, configures, and controls all Gefen Video and KVM over IP products.
  • Built-in web server allows access from any web-enabled device, including phones, tablets, and PCs
  • Two Ethernet ports with independent IP and MAC Addresses allow segregation of Video/KVM LAN and control LAN, and help provide separate security layers for administrators and end-users.
  • Seamless integration with Gefen Syner-Gâ„¢ software allows for quick installation and configuration on a network
  • Automatic assignment of IP addresses for all Gefen Video and KVM over IP devices on a network

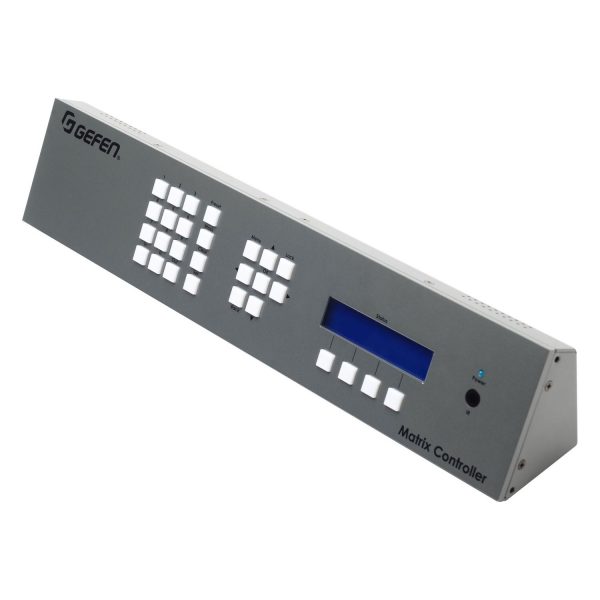

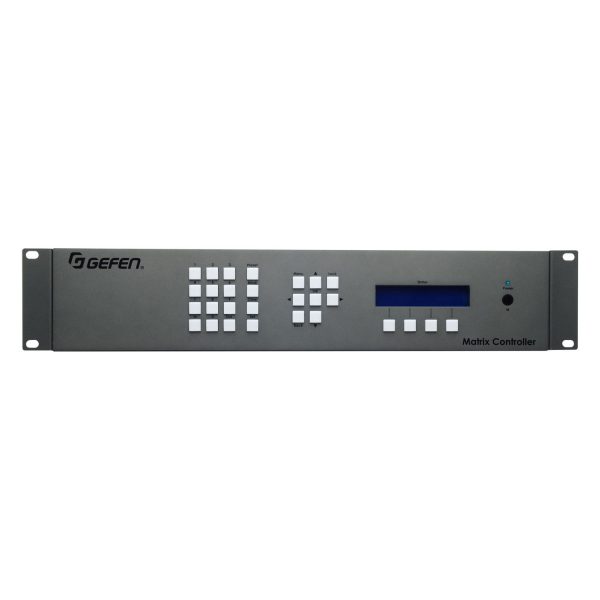

  • Front panel control push-buttons/display, handheld IR remote, and web server interface allow easy and convenient end-user operation
  • Automation control system interface via Telnet and UDP
  • POE (Power Over Ethernet) on LAN 1 port eliminates the need for an external power supply
  • Password-protected independent user and administrative access
  • Easy to read 2 line/20 characters per line Liquid Crystal Display
  • System Configuration Upload/Download function
  • Plug-and-Play installation with little to no set-up
  • Locking power supply connector
  • 2U tall rack-mountable enclo(more…)

Specifications

Display: 2 lines, 20 characters per line, Liquid Crystal Display, backlit

Push-buttons: (28) tact-type

IR Sensor: (1) on front panel

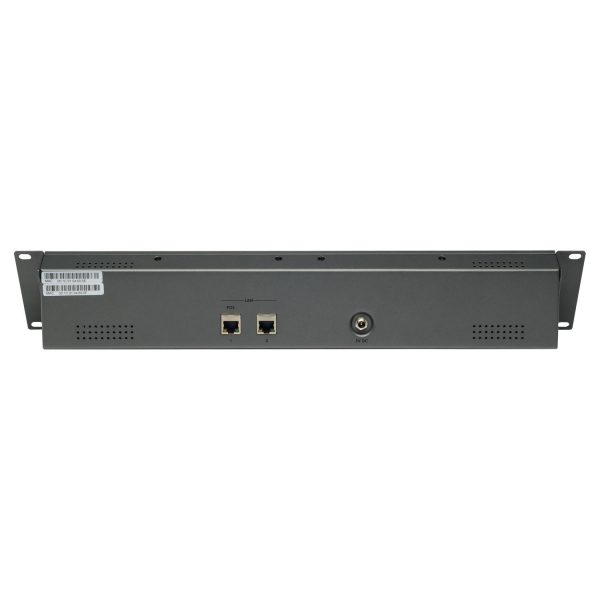

LAN 1 IP Port: (1) RJ-45 jack, POE-enabled

LAN 2 IP Port: (1) RJ-45 jack

Power Indicator: (1) LED, blue

Power Supply: 5V DC, locking connector

Power Consumption: 4.3W maximum

Operating Temperature: +32 to +122 °F (0 to +50 °C)

Operating Humidity: 5% to 90% RH, non-condensing

Storage Temperature: -4 to +185 °F (-20 to +85 °C)

Storage Humidity: 0% to 95% RH, non-condensing

MTBF: 50000 hours

Dimensions without rack ears (excluding buttons & connectors, W x H x D):

17" x 3.5" x 2.7" (432mm x 88mm x 68mm)

Dimensions with rack ears (excluding buttons & connectors, W x H x D):

19" x 3.5" x 2.7" (482mm x 88mm x 68mm)

Net Unit Weight: 3.7 lbs (1.7 kg)

Packaged Weight: 5.6 lbs (2.6 kg)

Other Specifications

Shipping Info
  • Length20 (Inches)
  • Width7 (Inches)
  • Height4 (Inches)
  • Weight5.8 (Lbs)
  • UPC888814321937
Other Specifications
  • Display: 2 lines, 20 characters per line, Liquid Crystal Display, backlit
  • Push-buttons: (28) tact-type
  • IR Sensor: (1) on front panel
  • LAN 1 IP Port: (1) RJ-45 jack, POE-enabled
  • LAN 2 IP Port: (1) RJ-45 jack
  • Power Indicator: (1) LED, blue
  • Power Supply: 5V DC, locking connector
  • Power Consumption: 4.3W maximum
  • Operating Temperature: +32 to +122 °F (0 to +50 °C)
  • Operating Humidity: 5% to 90% RH, non-condensing
  • Storage Temperature: -4 to +185 °F (-20 to +85 °C)
  • Storage Humidity: 0% to 95% RH, non-condensing
  • MTBF: 50000 hours
  • Dimensions without rack ears (excluding buttons & connectors, W x H x D):
  • 17" x 3.5" x 2.7" (432mm x 88mm x 68mm)
  • Dimensions with rack ears (excluding buttons & connectors, W x H x D):
  • 19" x 3.5" x 2.7" (482mm x 88mm x 68mm)
  • Net Unit Weight: 3.7 lbs (1.7 kg)
  • Packaged Weight: 5.6 lbs (2.6 kg)
In The Box
  • Matrix Controller (EXT-CU-LAN)(1)

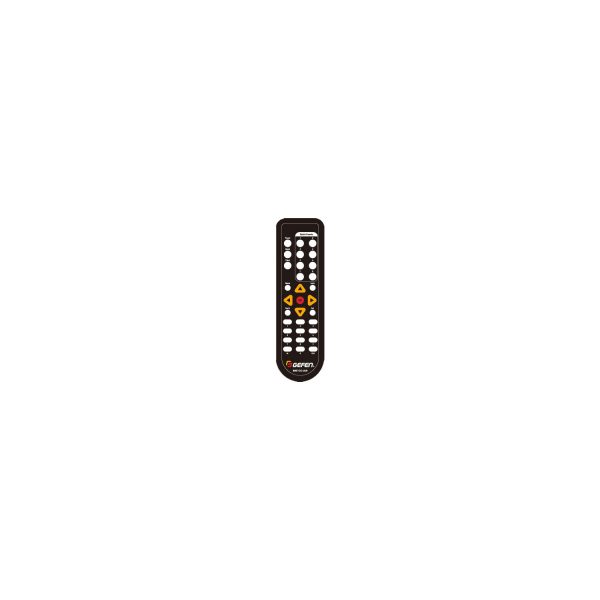

  • IR Remote Control Unit (RMT-CU-LAN)(1)
  • 5V DC Power Supply (EXT-PS526AIP-LP)(1)

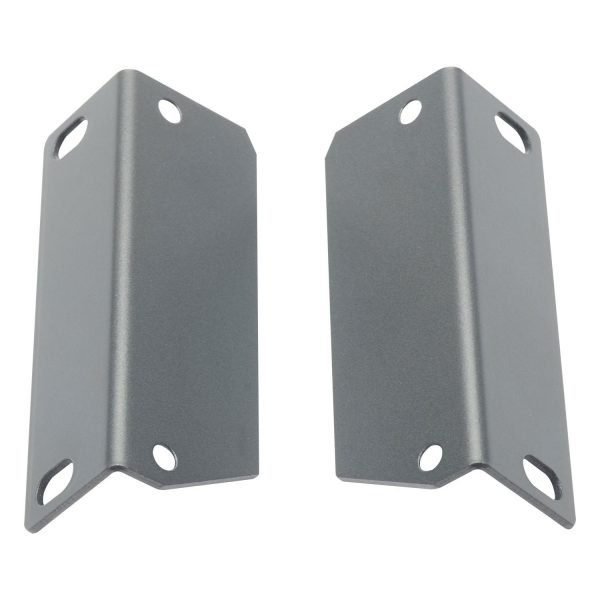

  • et) Rack Ears(1)
  • Rubber Feet(6)
  • Machine Screws(4)
  • Quick-Start Guide (QSG-EXT-CU-LAN)(1)

Warranty

3 year product warranty

If the product was purchased before March 29, 2017, the warranty duration is 2 years.

Please see the Gefen warranty page for more details
