GTV-HDMI-2-COMPSVIDSN

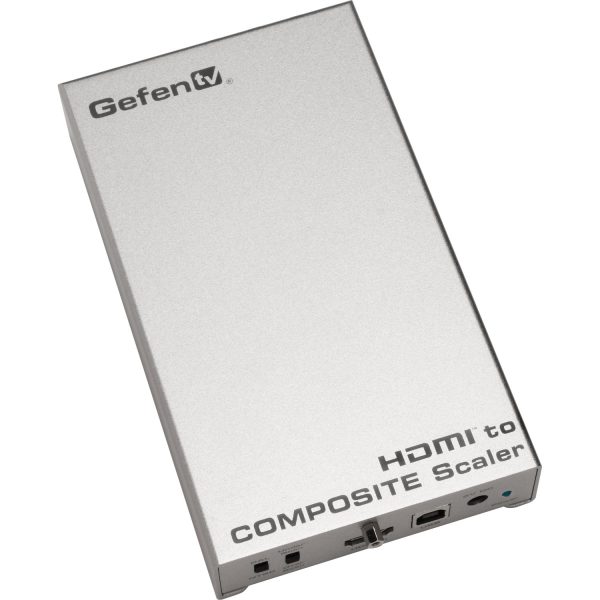

HDMI to Composite / S-Video Scaler

Scales and Converts HDMI video into Composite or S-Video

Description

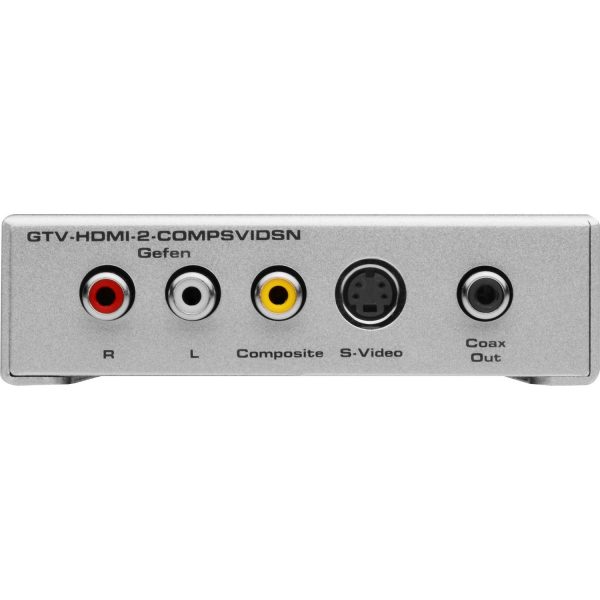

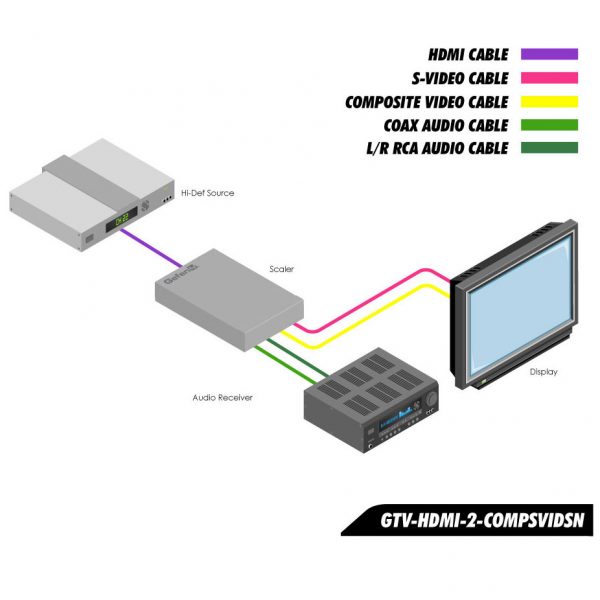

Convert any Hi-Def source to standard definition NTSC/PAL format with scaling. The HDMI to analog video scaler supports resolutions up to 1080p Full HD video and scaled outputs in Composite and S Video, while maintaining the original aspect ratio for optimal viewing. The coax S/PDIF digital audio and left/right analog audio outputs allow the audio extracted from the HDMI signal to be sent to any AV Receiver or audio amplifier. Underscan/Overscan and NTSC/PAL switches help assure compatibility with a variety of analog televisions. This scaler also features a USB port for firmware upgrades.

Features

  • Supported input resolutions:
    • 480i@60Hz
    • 576i@50Hz
    • 480p@60Hz
    • 576p@50/Hz
    • 720p@50/60Hz
    • 1080i@50/60Hz
    • 1080p@50/60Hz
    • 640×480@60Hz
    • 800×600@60Hz
    • 1024×768@60Hz
    • 1280×1024@60Hz
    • 1600×1200@60Hz
  • Converts and scales HDMI to Composite/S-Video at 480i/60 or 576i/50
  • De-embeds audio from HDMI and outputs it as digital and analog audio
  • Accepts HDMI video at resolutions of up to 1080p Full HD
  • Supports both NTSC and PAL formats

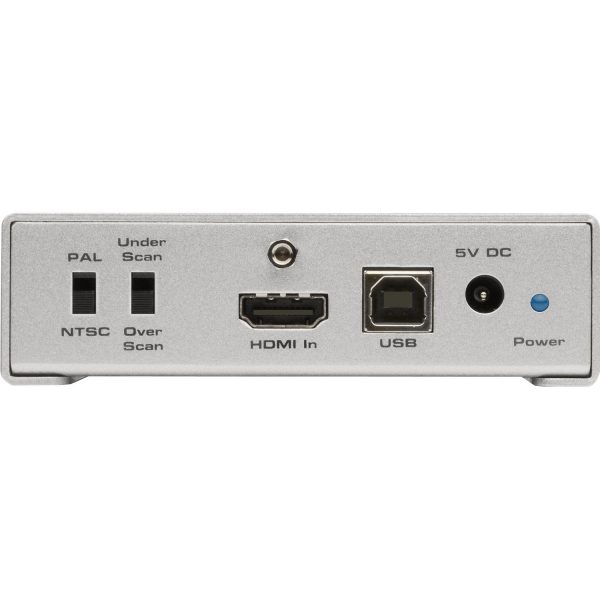

  • Underscan/Overscan Switch helps optimize image size on old analog TV screens without over-cropping or visible black borders
  • Field upgradable firmware via USB port

Other Specifications

Shipping Info
  • Length12 (Inches)
  • Width6.13 (Inches)
  • Height4.25 (Inches)
  • Weight2.2 (Lbs)
  • UPC845344057309
In The Box
  • HDMI to Composite Scaler with USB port (GTV-HDMI-2-COMPSVIDSN)(1)
  • 6 ft. Locking HDMI Cable (CAB-HD-LCK-06MM)(1)
  • 5V DC Locking Power Supply (EXT-PS526AIPN)(1)
  • Quick Start Guide (QSG-GTV-HDMI-2-COMPSVIDSN)(1)

Warranty

2 year product warranty


Please see the Gefen warranty page for more details
